ATC|ATC电容|ATC射频电容|射频电容电容器特点及应用
1.1 特点
• 尺寸规格系列化，适用于混合集成电路或印刷电路的表面贴装元件；
• 具有高Q值、超低ESR、可靠性高的特点；
• 损耗低，电容量稳定性高、工作频率高；
• 适用于各类设备中的高频电路、VHF-微波段、射频及放大电路中；
1.2 主要性能指标
• 温度系数：C0G：0±30ppm/℃
• 电容量漂移：不超过±0.2%或±0.05pF，取较大者。
• 品质因数（Q值）：频率为1MHz/1KHz时大于2,000
• 绝缘电阻：在20℃下：≥100000MΩ
• 工作温度：-55～125℃

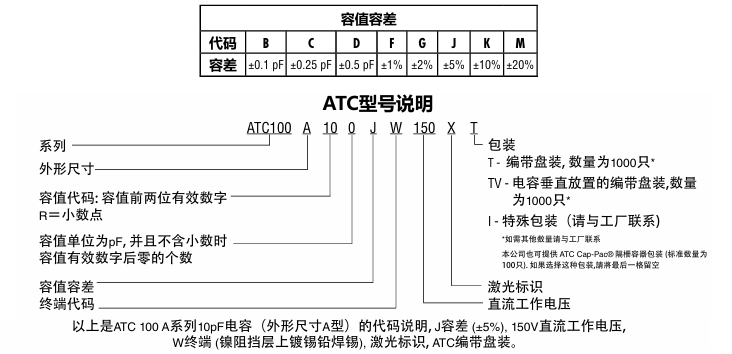

ATC100A100JW150xx (ATC100A-10 пФ±5 %-W-150 В) ATC
ATC100A101FW150XT (ATC100A-100 пФ±1 %-W-150 В) ATC
ATC100A120JW150Xx (ATC100A-12 пФ±5 %-W-150 В) ATC
ATC100A150JW150Xx (ATC100A-15 пФ±5 %-W-150 В) ATC
ATC100A270FW150Xx (ATC100A-27 пФ±1 %-W-150 В) ATC
ATC100A4R7BW150XT (ATC100A-4,7 пФ±0,1 пФ-W-150 В) ATC
ATC100A560FW150XT (ATC100A-56 пФ±1 %-W-150 В) ATC
ATC100A5R6BW150XT (ATC100A-5,6 пФ±0,1 пФ-W-150 В) ATC
ATC100A6R8BW150XT (ATC100A-6,8 пФ±0,1 пФ-W-150 В) ATC
ATC100B0R3BW500xx (ATC100B-0,3 пФ±0,1 пФ-W-500 В) ATC
ATC100B0R7BW500xx (ATC100B-0,7 пФ±0,1 пФ-W-500 В) ATC
ATC100B100JW500Xx (ATC100B-10 пФ±5 %-W-500 В) ATC
ATC100B101JW500Xx (ATC100B-100 пФ±5 %-W-500 В) ATC
ATC100B102JW50xx (ATC100B-1000 пФ±5 %-W-50 В) ATC
ATC100B111JW300Xx (ATC100B-110 пФ±5 %-W-300 В) ATC
ATC100B120JW500xx (ATC100B-12 пФ±5 %-W-500 В) ATC
ATC100B130JW500Xx (ATC100B-13 пФ±5 %-W-500 В) ATC
ATC100B150JW500Xx (ATC100B-15 пФ±5 %-W-500 В) ATC
ATC100B151JW300XC (ATC100B-150 пФ±5 %-W-300 В) ATC
ATC100B160JW500Xx (ATC100B-16 пФ±5 %-W-500 В) ATC
ATC100B180FW500Xx (ATC100B-18 пФ±1 %-W-500 В) ATC
ATC100B180JW500xx (ATC100B-18 пФ±5 %-W-500 В) ATC
ATC100B181JW300Xx (ATC100B-180 пФ±5 %-W-300 В) ATC
ATC100B1R0BT500Xx (ATC100B-1 пФ±0,1 пФ-T-500 В) ATC
ATC100B1R0BW500xx (ATC100B-1 пФ±0,1 пФ-W-500 В) ATC
ATC100B1R2BW500XT (ATC100B-1,2 пФ±0,1 пФ-W-500 В) ATC
ATC100B1R5BW500Xx (ATC100B-1,5 пФ±0,1 пФ-W-500 В) ATC
ATC100B1R8BW500XT (ATC100B-1,8 пФ±0,1 пФ-W-500 В) ATC
ATC100B201JW300Xx (ATC100B-200 пФ±5 %-W-300 В) ATC
ATC100B220JW500Xx (ATC100B-22 пФ±5 %-W-500 В) ATC
ATC100B240JW500Xx (ATC100B-24 пФ±5 %-W-500 В) ATC
ATC100B270JW500Xx (ATC100B-27 пФ±5 %-W-500 В) ATC
ATC100B2R0BW500xx (ATC100B-2 пФ±0,1 пФ-W-500 В) ATC
ATC100B2R2BW500xx (ATC100B-2,2 пФ±0,1 пФ-W-500 В) ATC
ATC100B2R4BW500XT (ATC100B-2,4 пФ±0,1 пФ-W-500 В) ATC
ATC100B2R7BW500xx (ATC100B-2,7 пФ±0,1 пФ-W-500 В) ATC
ATC100B300JW500Xx (ATC100B-30 пФ±5 %-W-500 В) ATC
ATC100B330JW500Xx (ATC100B-33 пФ±5 %-W-500 В) ATC
ATC100B331JW200Xx (ATC100B-330 пФ±5 %-W-200 В) ATC
ATC100B360JW500Xx (ATC100B-36 пФ±5 %-W-500 В) ATC
ATC100B390GW500xx (ATC100B-39 пФ±2 %-W-500 В) ATC
ATC100B3R3BW500Xx (ATC100B-3,3 пФ±0,1 пФ-W-500 В) ATC
ATC100B3R6BW500Xx (ATC100B-3,6 пФ±0,1 пФ-W-500 В) ATC
ATC100B471JW200Xx (ATC100B-470 пФ±5 %-W-200 В) ATC
ATC100B4R3BW500Xx (ATC100B-4,3 пФ±0,1 пФ-W-500 В) ATC
ATC100B4R7BT500Xx (ATC100B-4,7 пФ±0,1 пФ-T-500 В) ATC
ATC100B4R7BW500Xx (ATC100B-4,7 пФ±0,1 пФ-W-500 В) ATC
ATC100B510FW500XC (ATC100B-51 пФ±1 %-W-500 В) ATC
ATC100B560JW500Xx (ATC100B-56 пФ±5 %-W-500 В) ATC
ATC100B5R6BW500XC (ATC100B-5,6 пФ±0,1 пФ-W-500 В) ATC
ATC100B6R8BW500XT (ATC100B-6,8 пФ±0,1 пФ-W-500 В) ATC
ATC100B8R2BW500XT (ATC100B-8,2 пФ±0,1 пФ-W-500 В) ATC
ATC100C100JW2500Xx (ATC100C-10 пФ±5 %-W-2500 В) ATC
ATC100C181JW2500Xx (ATC100C-180 пФ±5 %-W-2500 В) ATC
ATC100C1R2BW2500xx (ATC100C-1,2 пФ±0,1 пФ-W-2500 В) ATC
ATC100C1R5BW2500Xx (ATC100C-1,5 пФ±0,1 пФ-W-2500 В) ATC
ATC100C270GW2500Xx (ATC100C-27 пФ±2 %-W-2500 В) ATC
ATC100C2R4BW2500Xx (ATC100C-2,4 пФ±0,1 пФ-W-2500 В) ATC
ATC100C3R0BW2500Xx (ATC100C-3 пФ±0,1 пФ-W-2500 В) ATC
ATC100C3R3BW2500Xx (ATC100C-3,3 пФ±0,1 пФ-W-2500 В) ATC
ATC100C470GW2500Xx (ATC100C-47 пФ±2 %-W-2500 В) ATC
ATC100C6R8BW2500Xx (ATC100C-6,8 пФ±0,1 пФ-W-2500 В) ATC
ATC200B104KW50XC (ATC200B-0,1 мкФ±10 %-W-50 В) ATC
ATC200B223KW50XC (ATC200B-0,022 мкФ±10 %-W-50 B) ATC
ATC600F0R1BW250Xx (ATC600F-0,1 пФ±0,1 пФ-W-250 В) ATC
ATC600F0R6BW250Xx (ATC600F-0,6 пФ±0,1 пФ-W-250 В) ATC
ATC600F0R7BW250Xx (ATC600F-0,7 пФ±0,1 пФ-W-250 В) ATC
ATC600F0R8BW250Xx (ATC600F-0,8 пФ±0,1 пФ-W-250 В) ATC
ATC600F0R9BW250Xx (ATC600F-0,9 пФ±0,1 пФ-W-250 В) ATC
ATC600F111FW250Xx (ATC600F-110 пФ±1 %-W-250 В) ATC
ATC600F121FW250Xx (ATC600F-120 пФ±1 %-W-250 В) ATC
ATC600F150FT250Xx (ATC600F-15 пФ±1 %-T-250 В) ATC
ATC600F180FW250Xx (ATC600F-18 пФ±1 %-W-250 В) ATC
ATC600F1R0BT250XT (ATC600F-1 пФ±0,1 пФ-T-250 В) ATC
ATC600F1R0BW250Xx (ATC600F-1 пФ±0,1 пФ-W-250 В) ATC
ATC600F1R1BW250Xx (ATC600F-1,1 пФ±0,1 пФ-W-250 В) ATC
ATC600F1R2BW250Xx (ATC600F-1,2 пФ±0,1 пФ-W-250 В) ATC
ATC600F1R8BW250Xx (ATC600F-1,8 пФ±0,1 пФ-W-250 В) ATC
ATC600F201JT250XT (ATC600F-200 пФ±5 %-T-250 В) ATC
ATC600F241FW250Xx (ATC600F-240 пФ±1 %-W-250 В) ATC
ATC600F241JW250Xx (ATC600F-240 пФ±5 %-W-250 В) ATC
ATC600F270FT250Xx (ATC600F-27 пФ±1 %-T-250 В) ATC
ATC600F2R2BW250Xx (ATC600F-2,2 пФ±0,1 пФ-W-250 В) ATC
ATC600F2R4BW250Xx (ATC600F-2,4 пФ±0,1 пФ-W-250 В) ATC
ATC600F300FT250Xx (ATC600F-30 пФ±1 %-T-250 В) ATC
ATC600F330FT250XT (ATC600F-33 пФ±1 %-T-250 В) ATC
ATC600F3R3BW250Xx (ATC600F-3,3 пФ±0,1 пФ-W-250 В) ATC
ATC600F3R6BW250Xx (ATC600F-3,6 пФ±0,1 пФ-W-250 В) ATC
ATC600F3R9BW250Xx (ATC600F-3,9 пФ±0,1 пФ-W-250 В) ATC
ATC600F4R3BT250XT (ATC600F-4,3 пФ±0,1 пФ-T-250 В) ATC
ATC600F4R7BT250Xx (ATC600F-4,7 пФ±0,1 пФ-T-250 В) ATC
ATC600F4R7BW250Xx (ATC600F-4,7 пФ±0,1 пФ-W-250 В) ATC
ATC600F5R1BT250Xx (ATC600F-5,1 пФ±0,1 пФ-T-250 В) ATC
ATC600F5R1BW250Xx (ATC600F-5,1 пФ±0,1 пФ-W-250 В) ATC
ATC600F5R6BW250Xx (ATC600F-5,6 пФ±0,1 пФ-W-250 В) ATC
ATC600F6R2BW250Xx (ATC600F-6,2 пФ±0,1 пФ-W-250 В) ATC
ATC600F6R8BW250Xx (ATC600F-6,8 пФ±0,1 пФ-W-250 В) ATC
ATC800B151JT300XT (ATC800B-150 пФ±5 %-T-300 В) ATC
ATC800B220JT500Xx (ATC800B-22 пФ±5 %-T-500 В) ATC
ATC800B241FW200Xx (ATC800B-240 пФ±1 %-W-200 В) ATC
ATC800B2R2BT500Xx (ATC800B-2,2 пФ±0,1 пФ-T-500 В) ATC
ATC800B2R4BT500Xx (ATC800B-2,4 пФ±0,1 пФ-T-500 В) ATC
ATC800B2R7BT500Xx (ATC800B-2,7 пФ±0,1 пФ-T-500 В) ATC
ATC800B3R3BT500Xx (ATC800B-3,3 пФ±0,1 пФ-T-500 В) ATC
ATC800B3R6BT500Xx (ATC800B-3,6 пФ±0,1 пФ-T-500 В) ATC
ATC800B680JT500XT (ATC800B-68 пФ±5 %-T-500 В) ATC
ATC800B6R8BT500Xx (ATC800B-6,8 пФ±0,1 пФ-T-500 В) ATC
ATC800B7R5BT500Xx (ATC800B-7,5 пФ±0,1 пФ-T-500 В) ATC
ATC800B9R1BT500XT (ATC800B-9,1 пФ±0,1 пФ-T-500 В) ATC
ATC800R1R5BT500Xx (ATC800R-1,5 пФ±0,1 пФ-T-500 В) ATC
ATC900C683KW250Xx (ATC900C-0,068 мкФ±10 %-W-250 B) ATC
