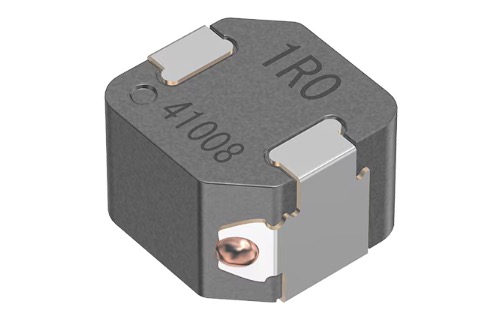

Manufacturer: TDK
Product type: Power inductor (SMD type)
RoHS:
Type: Power Conductor
Package/Box: 7.1 mm x 6.5 mm x 5 mm
Shielded:
Inductance: 330 nH
Tolerance: 15%
Maximum DC current: 17 A
Maximum DC resistance: 2.86 mOhms
Saturation current: 25.2 A
Minimum operating temperature: -40 ° C
Maximum operating temperature:+125 ° C
Terminal: Standard
Length: 7.1 mm
Width: 6.5 mm
Height: 5mm
Core material: Metal
Series: SPM-CT
Encapsulation: Reel
Encapsulation: Cut Tape
Application: Commercial
Trademark: TDK
Installation style: PCB Mount
Product: Power Conductors
Product Type: Power Conductors - SMD
1000
Subcategory: Inductors, Chokes&Coils
End connection type: SMD/SMT
Test frequency: 100 kHz
Part number alias: SPM6550CT-R33L-
Unit weight: 1.100 g
