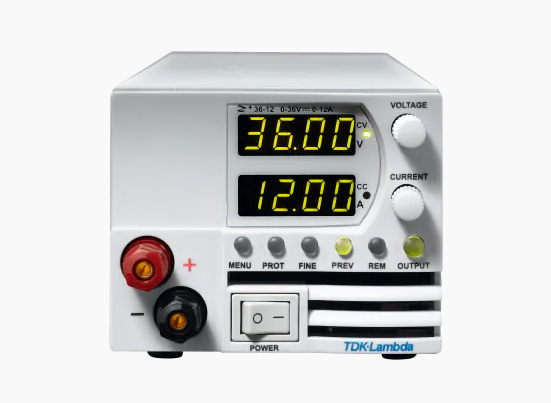

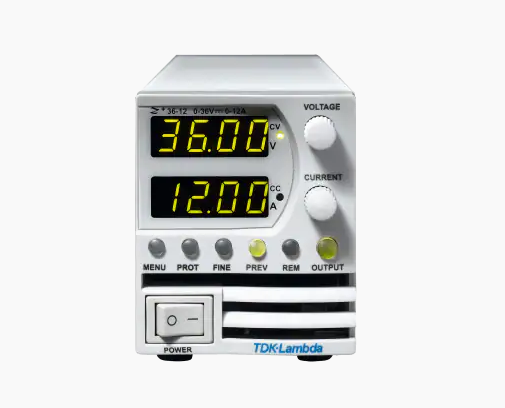

TDK Lambda Z+系列可编程电源适用于台式或2U机架安装，是一款非常紧凑的可编程电源，提供200至800W的功率级。TDK Lambda Z+系列可编程电源提供多种远程编程方法可编程远程操作，具有内置USB、RS-232和RS-485接口。还提供LAN、GPIB和隔离模拟编程选项。其他功能包括小尺寸（2U高）、0.99典型有源功率因数校正、可选择自动重新启动/安全启动、恒流（CC）/（CV）恒压模式和宽输入范围（85VAC至265VAC的宽输入）。该系列电源有5年质保期。200W至800W Z+电源适用于许多应用，包括电子元器件的生产、检验、可靠性和耐久性测试，以及老化测试，半导体老化测试，实验室电源等等。TDK-Lambda|Z+系列|TDK可编程直流电源|Lambda可编程电源
TDK-lambda Z+系列可编程直流电源参数表（低压系列）：
型号 电压/V 电流/A 最大功率/W
Z10-20-U 0 - 10 0 - 20 200
Z10-40-U 0 - 10 0 - 40 400
Z10-60-U 0 - 10 0 - 60 600
Z10-72-U 0 - 10 0 - 72 720
Z20-10-U 0 - 20 0 - 10 200
Z20-20-U 0 - 20 0 - 20 400
Z20-30-U 0 - 20 0 - 30 600
Z20-40-U 0 - 20 0 - 40 800
Z36-6-U 0 - 36 0 - 6 216
Z36-12-U 0 - 36 0 - 12 432
Z36-18-U 0 - 36 0 - 18 648
Z36-24-U 0 - 36 0 - 24 864
Z60-3.5-U 0 - 60 0 - 3.5 210
Z60-7-U 0 - 60 0 - 7 420
Z60-10-U 0 - 60 0 - 10 600
Z60-14-U 0 - 60 0 - 14 840
Z100-2-U 0 - 100 0 - 2 200
Z100-4-U 0 - 100 0 - 4 400
Z100-6-U 0 - 100 0 - 6 600
Z100-8-U 0 - 100 0 - 8 800
TDK-lambda Z+系列可编程直流电源参数表（高压系列）：
型号 电压/V 电流/A 最大功率/W
Z160-1.3-U 0 - 160 0 - 1.3 208
Z160-2.6-U 0 - 160 0 - 2.6 416
Z160-4-U 0 - 160 0 - 4 640
Z160-5-U 0 - 160 0 - 5 800
Z320-0.65-U 0 - 320 0 - 0.65 208
Z320-1.3-U 0 - 320 0 - 1.3 416
Z320-2-U 0 - 320 0 - 2 640
Z320-2.5-U 0 - 320 0 - 2.5 800
Z375-2.2-U 0 - 375 0 - 2.2 825
Z650-0.32-U 0 - 650 0 - 0.32 208
Z650-0.64-U 0 - 650 0 - 0.64 416
Z650-1-U 0 - 650 0 - 1 650
Z650-1.25-U 0 - 650 0 - 1.25 812
TDK-lambda Z+系列可编程直流电源型号低压：
Z10-20-IEEE-U Z10-20-IS420-U Z10-20-IS510-U Z10-20-L-U Z10-20-LAN-L-U Z10-20-LAN-U
Z10-20-U Z10-40-IEEE-U Z10-40-IS420-U Z10-40-IS510-U Z10-40-L-U Z10-40-LAN-L-U
Z10-40-LAN-U Z10-40-U Z10-60-IEEE-U Z10-60-IS420-U Z10-60-IS510-U Z10-60-L-U
Z10-60-LAN-L-U Z10-60-LAN-U Z10-60-U Z10-72-IEEE-U Z10-72-IS420-U Z10-72-IS510-U
Z10-72-L-U Z10-72-LAN-L-U Z10-72-LAN-U Z10-72-U Z100-2-IEEE-U Z100-2-IS420-U
Z100-2-IS510-U Z100-2-LAN-U Z100-2-U Z100-4-IEEE-U Z100-4-IS420-U Z100-4-IS510-U
Z100-4-LAN-U Z100-4-U Z100-6-IEEE-U Z100-6-IS420-U Z100-6-IS510-U Z100-6-LAN-U
Z100-6-U Z100-8-IEEE-U Z100-8-IS420-U Z100-8-IS510-U Z100-8-LAN-U Z100-8-U
Z20-10-IEEE-U Z20-10-IS420-U Z20-10-IS510-U Z20-10-L- Z20-10-LAN-L-U Z20-10-LAN-U
Z20-10-U Z20-20-IEEE-U Z20-20-IS420-U Z20-20-IS510-U Z20-20-L-U Z20-20-LAN-L-U
Z20-20-LAN-U Z20-20-U Z20-30-IEEE-U Z20-30-IS420-U Z20-30-IS510-U Z20-30-L-U
Z20-30-LAN-L-U Z20-30-LAN-U Z20-30-U Z20-40-IEEE-U Z20-40-IS420-U Z20-40-IS510-U
Z20-40-L-U Z20-40-LAN-L-U Z20-40-LAN-U Z20-40-U Z36-12-IEEE-U Z36-12-IS420-U
Z36-12-IS510-U Z36-12-L-U Z36-12-LAN-L-U Z36-12-LAN-U Z36-12-U
Z36-18-IEEE-U Z36-18-IS420-U Z36-18-IS510-U Z36-18-L-U Z36-18-LAN-L-U Z36-18-LAN-U
Z36-18-U Z36-24-IEEE-U Z36-24-IS420-U Z36-24-IS510-U Z36-24-L-U Z36-24-LAN-L-U
Z36-24-LAN-U Z36-24-U Z36-6-IEEE-U Z36-6-IS420-U Z36-6-IS510-U Z36-6-L-U
Z36-6-LAN-L-U Z36-6-LAN-U Z36-6-U Z60-10-IEEE-U Z60-10-IS420-U Z60-10-IS510-U
Z60-10-L-U Z60-10-LAN-L-U Z60-10-LAN-U Z60-10-U Z60-14-IEEE-U Z60-14-IS420-U
Z60-14-IS510-U Z60-14-L-U Z60-14-LAN-L-U Z60-14-LAN-U Z60-14-U Z60-3.5-IEEE-U
Z60-3.5-IS420-U Z60-3.5-IS510-U Z60-3.5-L-U Z60-3.5-LAN-L-U Z60-3.5-LAN-U Z60-3.5-U
Z60-7-IEEE-U Z60-7-IS420-U Z60-7-IS510-U Z60-7-L-U Z60-7-LAN-L-U Z60-7-LAN-U Z60-7-U
TDK-lambda Z+系列可编程直流电源型号高压：
Z160-1.3-IEEE-U Z160-1.3-IS420-U Z160-1.3-IS510-U Z160-1.3-LAN-U Z160-1.3-U
Z160-2.6-IEEE-U Z160-2.6-IS420-U Z160-2.6-IS510-U Z160-2.6-LAN-U Z160-2.6-U Z160-4-IEEE-U
Z160-4-IS420-U Z160-4-IS510-U Z160-4-LAN-U Z160-4-U Z160-5-IEEE-U Z160-5-IS420-U
Z160-5-IS510-U Z160-5-LAN-U Z160-5-U Z320-0.65-IEEE-U Z320-0.65-IS420-U Z320-0.65-IS510-U
Z320-0.65-LAN-U Z320-0.65-U Z320-1.3-IEEE-U Z320-1.3-IS420-U Z320-1.3-IS510-U Z650-1.25-U
Z320-1.3-U Z320-2-IEEE-U Z320-2-IS420-U Z320-2-IS510-U Z320-2-LAN-U Z320-2-U
Z320-2.5-IEEE-U Z320-2.5-IS420-U Z320-2.5-IS510-U Z320-2.5-LAN-U Z320-2.5-U Z375-2.2-IEEE-U
Z375-2.2-IS420-U Z375-2.2-IS510-U Z375-2.2-LAN-U Z375-2.2-U Z650-0.32-IEEE-U
Z650-0.32-IS420-U Z650-0.32-IS510-U Z650-0.32-LAN-U Z650-0.32-U Z650-0.64-IEEE-U
Z650-0.64-IS420-U Z650-0.64-IS510-U Z650-0.64-LAN-U Z650-0.64-U Z650-1-IEEE-U Z650-1-IS420-U
Z650-1-IS510-U Z650-1-LAN-U Z650-1-U Z650-1.25-IEEE-U Z650-1.25-IS420-U Z650-1.25-IS510-U
Z650-1.25-LAN-U Z320-1.3-LAN-U
