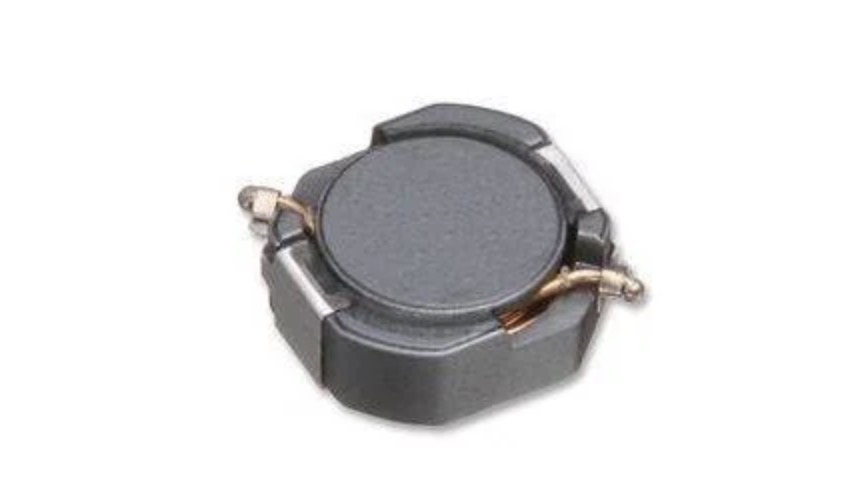

Manufacturer: TDK
Product type: Power inductor (SMD type)
RoHS:
Type: Power Conductor
Package/Box: 7 mm x 7 mm
Shielded:
Inductance: 1 uH
Tolerance: 30%
Maximum DC current: 11 A
Maximum DC resistance: 9 mOhms
Saturation current: 8.5 A
Minimum operating temperature: -55 ° C
Maximum operating temperature:+150 ° C
Terminal: Standard
Length: 7mm
Width: 7mm
Height: 4.5 mm
Core material: Ferrite
Qualification: AEC-Q200
Series: CLF-D
Encapsulation: Reel
Encapsulation: Cut Tape
Package: MouseReel
Application: Automotive
Trademark: TDK
Kernel type: Wirewound
Installation style: PCB Mount
Product: Power Conductors
Product Type: Power Conductors - SMD
1000
Subcategory: Inductors, Chokes&Coils
End connection type: SMD/SMT
Test frequency: 100 kHz
Part number alias: CLF7045NIT-1R0N-D-
Unit weight: 800 mg
