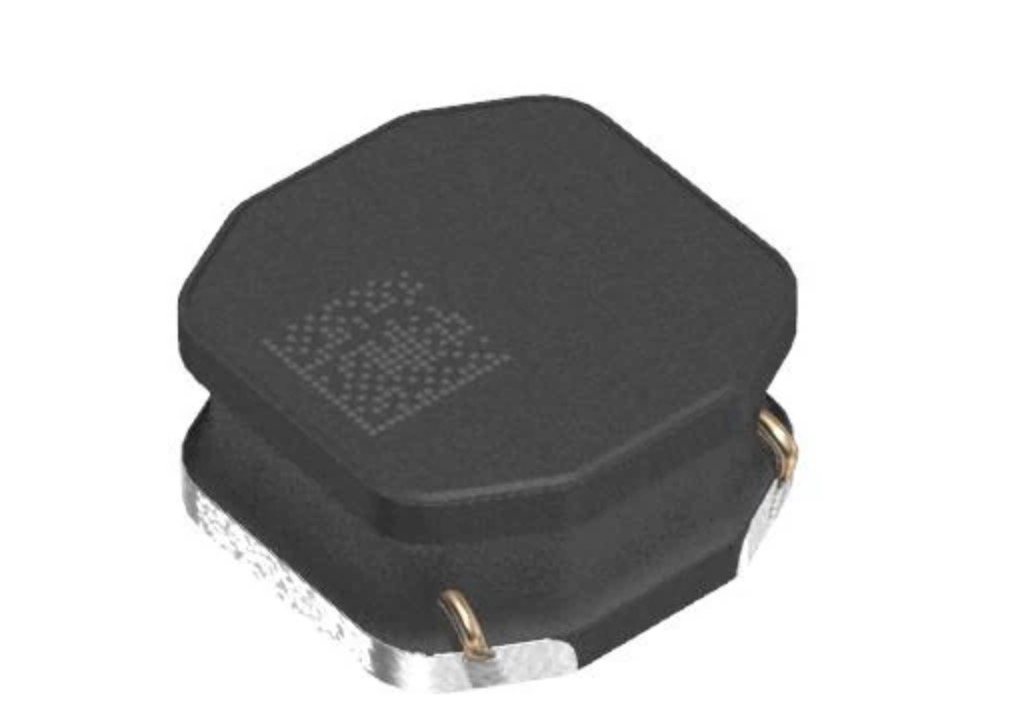

VLS3015CX-101M-H

Manufacturer: TDK

Product type: Power inductor (SMD type)

RoHS:

Type: High Power Conductor

Package/Box: 3 mm x 3 mm x 1.5 mm

Shielded:

Inductance: 100 uH

Tolerance: 20%

Maximum DC current: 300 mA

Maximum DC resistance: 2.544 Ohms

Saturation current: 260 mA

Minimum operating temperature: -40 ° C

Maximum operating temperature:+125 ° C

Terminal: Standard

Length: 3mm

Width: 3mm

Height: 1.5 mm

Core material: Ferrite

Qualification: AEC-Q200

Series: VLS-CX-H

Encapsulation: Reel

Encapsulation: Cut Tape

Package: MouseReel

Application: Automotive

Trademark: TDK

Kernel type: Wirewound

Installation style: PCB Mount

Product: Power Conductors

Product Type: Power Conductors - SMD

2000

Subcategory: Inductors, Chokes&Coils

End connection type: SMD/SMT

Test frequency: 1 MHz

Part number alias: VLS3015CX-101M-H-

Unit weight: 57 mg
