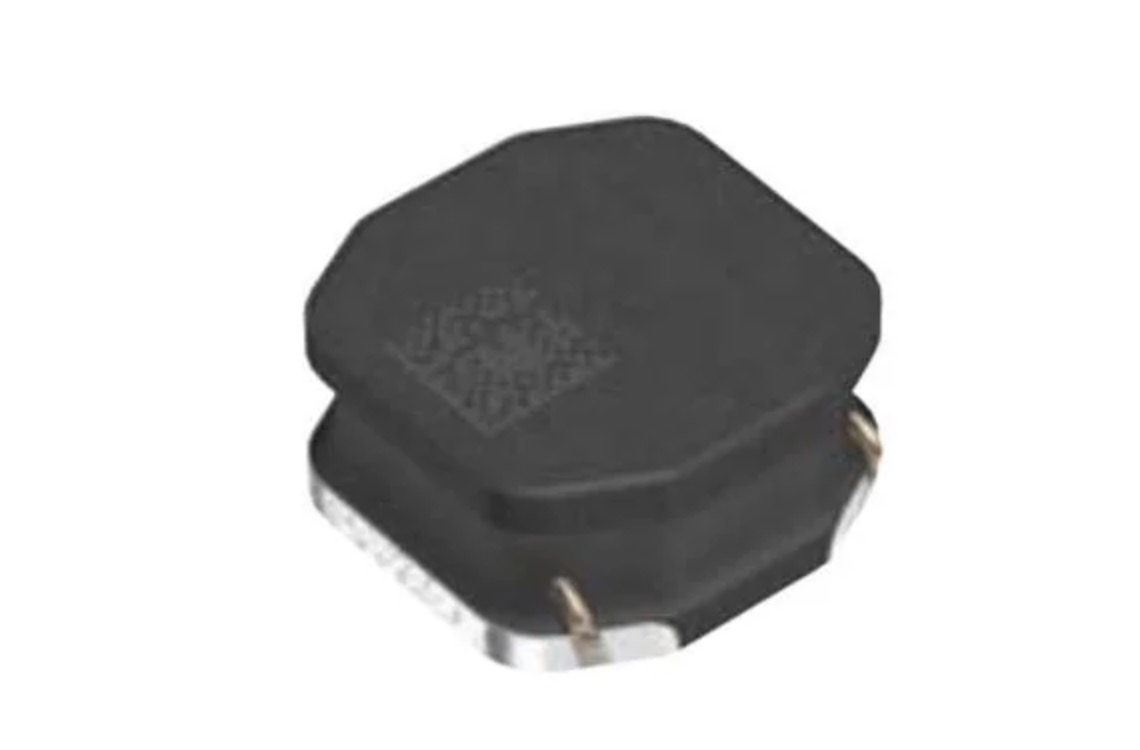

Manufacturer: TDK
Product type: Power inductor (SMD type)
RoHS:
Type: High Power Conductor
Package/Box: 3 mm x 3 mm x 1.5 mm
Shielded:
Inductance: 10 uH
Tolerance: 20%
Maximum DC current: 900 mA
Maximum DC resistance: 286 mOhms
Saturation current: 790 mA
Minimum operating temperature: -40 ° C
Maximum operating temperature:+125 ° C
Terminal: Standard
Length: 3mm
Width: 3mm
Height: 1.5 mm
Core material: Ferrite
Qualification: AEC-Q200
Series: VLS-CX-H
Encapsulation: Reel
Encapsulation: Cut Tape
Package: MouseReel
Application: Automotive
Trademark: TDK
Kernel type: Wirewound
Installation style: PCB Mount
Product: Power Conductors
Product Type: Power Conductors - SMD
2000
Subcategory: Inductors, Chokes&Coils
End connection type: SMD/SMT
Test frequency: 1 MHz
Part number alias: VLS3015CX-100M-H-
