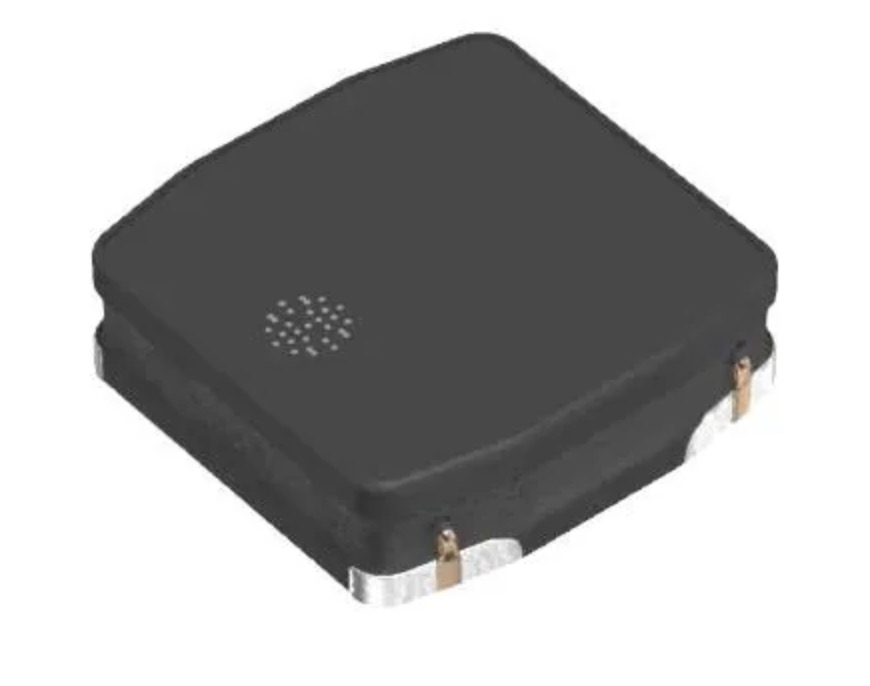

Manufacturer: TDK
Product type: Power inductor (SMD type)
RoHS:
Type: High Power Conductor
Package/Box: 4 mm x 4 mm x 1.2 mm
Inductance: 6.8 uH
Tolerance: 20%
Maximum DC current: 2.12 A
Maximum DC resistance: 208 mOhms
Saturation current: 3.07 A
Minimum operating temperature: -40 ° C
Maximum operating temperature:+105 ° C
Length: 4 mm
Width: 4 mm
Height: 1.2 mm
Core material: Metal
Series: VLS-HBX
Encapsulation: Reel
Encapsulation: Cut Tape
Package: MouseReel
Application: Power
Trademark: TDK
Kernel type: Wirewound
Installation style: PCB Mount
Product: Power Conductors
Product Type: Power Conductors - SMD
1000
Subcategory: Inductors, Chokes&Coils
End connection type: SMD/SMT
Test frequency: 1 MHz
Part number alias: VLS4012HBX-6R8M-N-
